◆ With Baytrail-D/I/M serial Cpu；
◆ J1900\J1800\N2806\N2900；
◆ DDR3 SODIMM 204 Socket Ram socket Max support 8GB
◆ 2*Intel I211AT Gigabit Ethernet；
◆ Onboard 32/64/128G EMMC Chipset（optional）
◆ 1*RJ45 Port, RS232；
◆ 1*IR Infrared receiving port；
◆ Single input DC power supply, DC12-19V power supply；
◆ Size: 134*126*40.6 mm；
Specifications
|
CPU
|
CPU
|
Support Baytrail-I/D/M serial CPU (J1900 N2900 J1800 N2806)
|
|
CPU package
|
BGA
|
|
Chipset
|
Support Baytrail-I/D/M serial CPU
|
|
Bioses
|
EFI Bioses
|
|
Ram
|
Technology Architecture
|
Single channel DDR3L 1066/1333MHz
|
|
capacity
|
Max support 8GB Ram
|
|
Socket
|
DDR3 SODIMM 204 Socket
|
|
Video
|
Graphics controller
|
Intel HD Graphics
|
|
DP
|
DP support Max resolution 2560*1600
|
|
HDMI
|
HDMI Max resolution 1920x1080
|
|
Dual display
|
HDMI+DP Synchronous or asynchronous display
|
|
I/O back panel
|
Ports
|

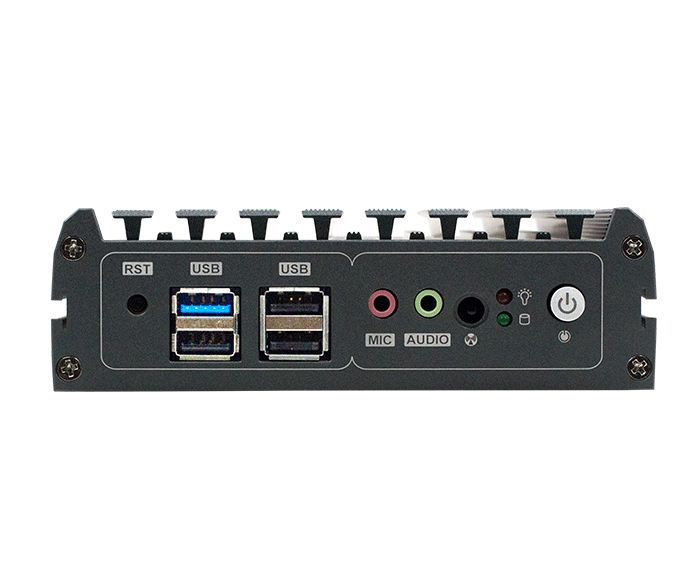

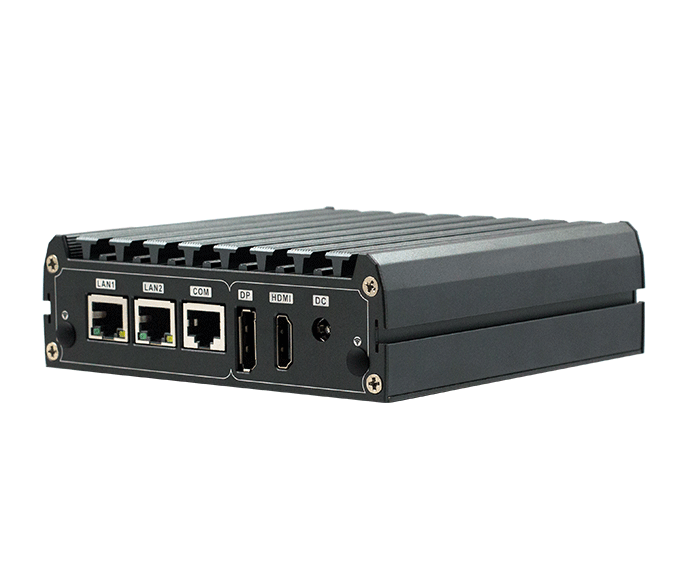

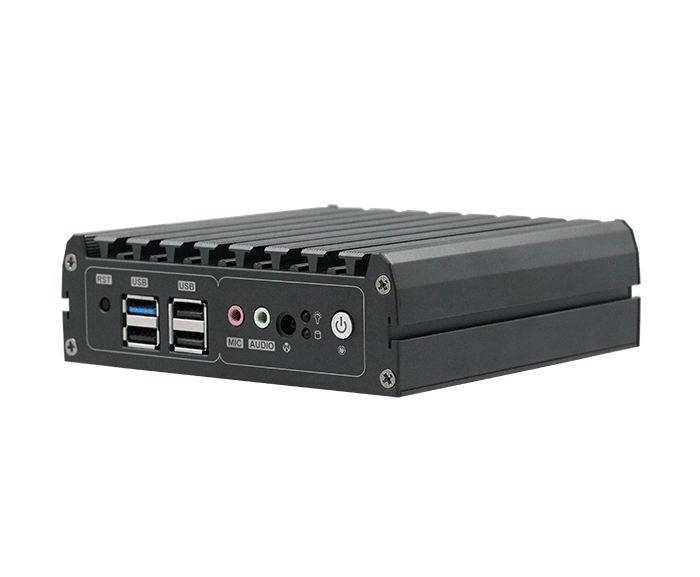

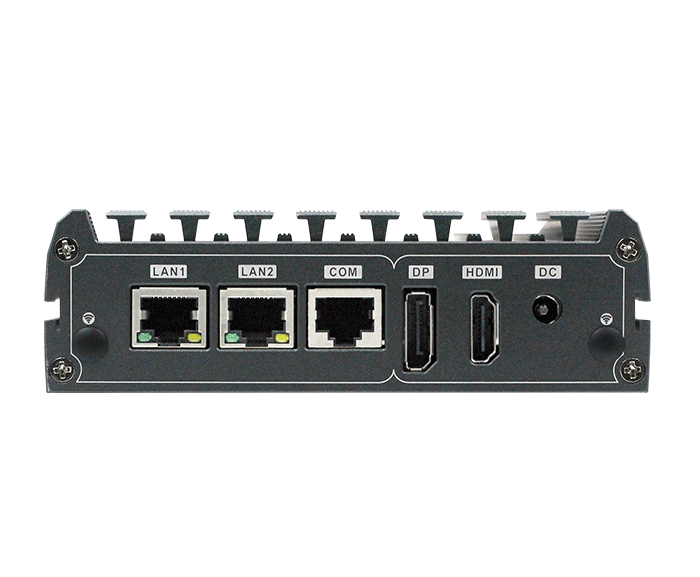

1*DP 1*HDMI 4*USB 2*LAN 1* quick start button with indicator light 1* restart button 1*Line_out 1*MIC 1* power indicator 1* hard disk indicator
|
|
Internet
|
Controller
|
2*Intel I211ATHigh-performance Gigabit LAN，RJ45 Port
|
|
Input/output interface
|
USB
|
3*USB2.0 1*USB3.0 Max support+5V/1A
|
|
Com
|
1*RJ45 Port RS-232
|
|
Infrared
|
1*IR Infrared receiving port
|
|
Audio
|
1*LINE OUT 1*MIC
|
|
Expansion bus
|
Mini-PCle
|
1*Mini-PCIe slot, only supports PCIE signaling devices
|
|
Storage
|
SATA
|
1*standard SATAII Port, Maximum transfer rate 3Gb/s
|
|
M-SATA
|
1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate 3gb/s
|
|
EMMC
|
Support32/64/128G(optional）
|
|
POWER SUPPLY
|
Power Type
|
Wide Voltage 12-19V
|
|
Power consumption
|
20W
|
|
WORKING ENVIRONMENT
|
Working temperature
|
-20℃ ~ +60℃
|
|
Storage temperature
|
-40℃ ~ +85℃
|
|
Working humidity
|
0% ~ 90%(non-condensing)
|
|
Storage humidity
|
0% ~ 90%(non-condensing)
|
|
MEASURE
|
Size
|
134*126*40.6 mm
|
|
Weight
|
1.5KG
|
|
Certification
|
|
CE,ROSH,FCC
|
Size
Order information
|
Model
|
description
|
CPU Optional
|
|
BT19NA-J1900
|
Integrated Celeron Baytrail J1900
Quad core 2.0Ghz up to2.4Ghz
DDR3 SODIMM 204 Socket ram ,max to 8gb
Embedded 32G/64/128G EMMC chipset （optional）
|
J1900,N2900(quad core）
|
|
BT19NA-N2806
|
Integrated celeron Baytrail J1800
Dual core 1.6Ghz up to2.0Ghz
DDR3 SODIMM 204 Socket ram socket ,max tobe 8gb ram
Embedded 32G/64/128G EMMC chipset (optional）
|
J1800,N2806（dual core）
|
